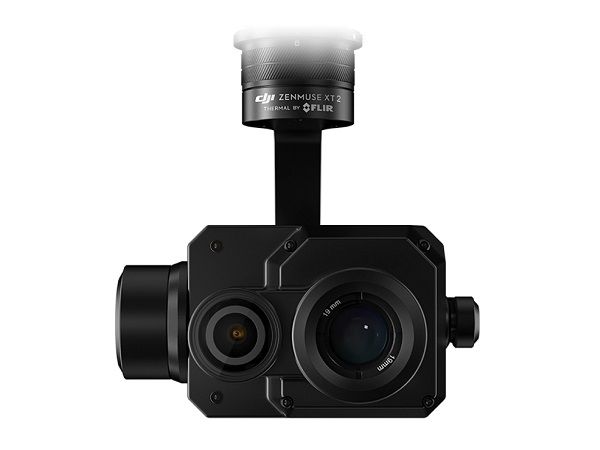

DJI ZENMUSE XT 2 CAMERA (PLEASE CONTACT US FOR THE PRICE)
DUAL VISION. SUPERIOR INTELLIGENCE.
Join the next generation of commercial drone solutions with the XT2.
Pairing the FLIR Tau 2 thermal sensor and 4K visual camera with
DJI’s leading stabilization and machine intelligence technology,
the XT2 quickly transforms aerial data into powerful insights
that save time, money – and lives.
NOW AVAILABLE!
Applications
See the unseen. FLIR thermal sensors reveal details invisible to the naked eye by making subtle differences in temperature visible. This new view on the world can reveal when equipment or buildings are damaged, the location of lost people and much more.
Watch Video : https://youtu.be/JOwgSrQXY_E
ZENMUSE XT2 SPECS
GENERAL
|
Name |
Zenmuse XT2 |
|
Dimensions |
With 25 mm lens: 123.7×112.6×127.1 mm |
THERMAL CAMERA
|
Thermal Imager |
Uncooled VOx Microbolometer |
|
FPA/Digital Video Display Formats |
640×512 |
|
Digital Zoom |
640×512: 1x, 2x, 4x, 8x |
|
Pixel Pitch |
17 μm |
|
Spectral Band |
7.5-13.5 μm |
|
Full Frame Rates |
30 Hz |
|
Exportable Frame Rates |
<9 Hz |
|
Sensitivity (NEdT) |
<50 mk @ f/1.0 |
|
Scene Range (High Gain) |
640×512: -25° to 135℃ |
|
Scene Range (Low Gain) |
-40° to 550℃ |
|
File Storage |
MicroSD card* |
|
Photo Format |
JPEG, TIFF, R-JPEG |
|
Video Format |
8 bit: MOV, MP4 14 bit: TIFF Sequence, SEQ** |
IMAGE PROCESSING & DISPLAY CONTROL
|
Image Optimization |
Yes |
|
Digital Detail Enhancement |
Yes |
|
Polarity Control (Black Hot/ White Hot) |
Yes |
GIMBAL
|
Angular Vibration Range |
±0.01° |
|
Mount |
Detachable |
|
Controllable Range |
Tilt: +30° to -90° |
|
Mechanical Range |
Tilt: +45° to -130° |
|
Max Controllable Speed |
Tilt: 90°/s |
VISUAL CAMERA
|
Sensor |
1/1.7" CMOS |
|
Lens |
Prime lens |
|
Digital Zoom |
1x, 2x, 4x, 8x |
|
Photo Formats |
JPEG |
|
Video Formats |
MOV, MP4 |
|
Video Resolutions |
4K Ultra HD: 3840×2160 29.97p |
|
Working Modes |
Capture, Record, Playback |
|
Still Photography Modes |
Single Shot |
|
Video Caption |
Supported |
|
Anti-flicker |
Auto, 50 Hz, 60 Hz |
|
Storage |
MicroSD card |
|
Supported File System |
FAT 32 (≤32GB), exFAT (>32GB) |
IMAGE PROCESSING & DISPLAY CONTROL
|
Color & Monochrome Palettes (LUT) |
Yes |
MODELS – LENS AND RESOLUTION OPTIONS
|
Thermal Lens Models |
9 mm, 13 mm, 19 mm, 25 mm |
|
640×512 FoV, iFoV |
N/A, f/1.25 45°×37° 1.308 mr, f/1.25 32°×26° 0.895 mr, f/1.1 25°×20° 0.680 mr |
|
336×256 FoV, iFoV |
f/1.25 35°×27° 1.889 mr, f/1.25 25°×19° 1.308 mr, f/1.25 17°×13° 0.895 mr, N/A |
|
Min Focus Distance |
3.2 cm, 7.6 cm, 15.3 cm, 30 cm |
|
Hyperfocal Distance |
2.1 cm, 4.4 cm, 9.5 cm, N/A |
|
Hyperfocal Depth of Field |
1.1 cm, 2.2 cm, 4.8 cm, N/A |
|
Notes |
The SD card, which is located near the lens, is used to store TIFF Sequence and SEQ infrared RAW video only. The other format footage will be stored in the other SD card. |
| Manufacturer | dji |
|---|
