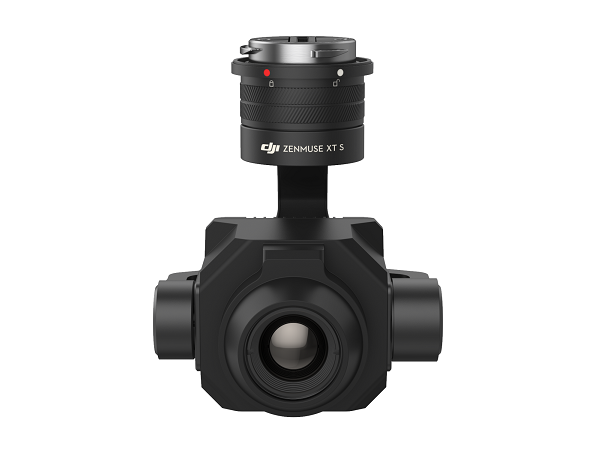

DJI ZENMUSE XT S (PLEASE CONTACT US FOR PRICE)

Professional Thermal Imaging Solution

The weather-resistant Zenmuse XT S is your new go-to tool for capturing high-definition thermal imagery in both JPEG (640×512) and R-JPEG (640×512).

≤40

mK

Sensitivity (NETD)

25

Hz

Frame Rate

17

μm

Pixel Pitch

IP44

LEVEL

Ingress Protection Rating

Accurate Temperature Measurement

Spot Meter

Tap a point to get a real-time reading of the surface temperature, so you can closely monitor the site or any equipment.

Area Measurement

Select an area to view the lowest, highest, and average temperatures.

Intelligent Features

Temp Alarm

Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.

Digital Zoom

Capture details from a safe distance with the 2x and 4x digital zoom while maintaining situational overview.

Isotherms

Visualize a specific band of temperatures to find what’s important. Choose from different modes, including Search People, Search Fire or Custom, to identify the target subject quickly and accurately.

Color Palettes

Adjust the colors applied to the thermal data based on the needs of specific scenarios.

Gain Modes

Adjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences; Low Gain Mode covers a wider temperature range.

R-JPEG Images

Images captured by the XT S are in the R-JPEG format with embedded temperature information. By importing these images into DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.

Purpose-built Application

DJI PILOT

DJI Pilot is a robust flight control app, and has been developed specifically for enterprise-users to unleash the power of their DJI drones. With development made specifically for the XT S, you can enjoy an optimized flight and aerial imaging process.
