INNOVATION

Explore these key features to see how every design element on the Unlimited Desert Racer combines to create an authentic and thrilling driving experience.

DETAILS

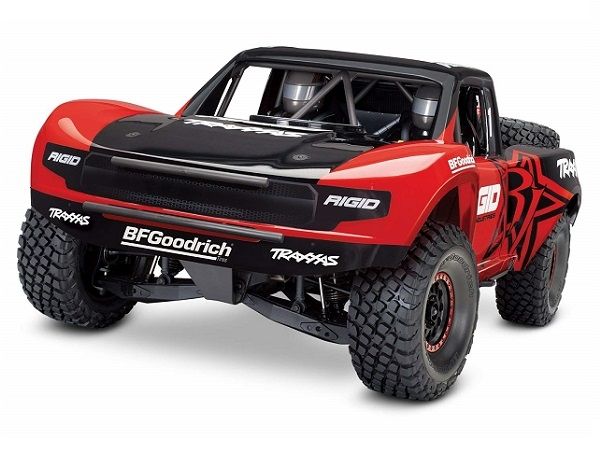

Beneath the Unlimited Desert Racer’s tough exterior and beautifully sculpted, fully-integrated tube frame chassis are the keys to its thrilling performance. Peer beneath the skin to discover what lies at the heart of this revolutionary new off-road vehicle.

• The Traxxas unlimited desert racer is engineered on an authentic, true to scale 4-wheel drive desert race truck chassis.

• The 4-link solid rear axle design provides huge suspension travel with authentic driving dynamics.

• From the cantilever sway bars to the 8 GTR shocks, Traxxas has accurately reproduced a true unlimited desert race chassis in both form and function.

• The 50+ mph unlimited desert racer delivers its pro-level performance with brutal 6S power.

• The vxl-6s ESC combines massive power handling with high-tech telemetry features.

• An ultra-tough drivetrain harnesses the extreme power to make it easy to control and fun to drive.

• Traxxas pro-scale is a new innovation that captures true-scale realism and combines it with extreme 6S lipo power and 50+ mph performance.

• The Traxxas unlimited desert racer faithfully captures the look and feel of trophy trucks and unlimited trick trucks as they charge hard across the desert at full speed.

PRO-SCALE^™ PERFORMANCE

Pro-Scale is a new Traxxas innovation that captures true-scale realism and combines it with extreme 6s LiPo power and 50+ mph performance. The Traxxas Unlimited Desert Racer faithfully captures the look and feel of Trophy Trucks and Unlimited Trick Trucks as they charge hard across the desert at full speed.

DRIVING REALISM

The Traxxas Unlimited Desert Racer is engineered on an authentic, true to scale 4-wheel drive desert race truck chassis. The 4-link solid rear axle design provides huge suspension travel with authentic driving dynamics. From the cantilever sway bars to the 8 GTR shocks, Traxxas has accurately reproduced a true unlimited desert race chassis in both form and function.

6S EXTREME POWER

The 50+ mph Unlimited Desert Racer delivers its pro-level performance with brutal 6s power. The VXL-6s ESC combines massive power handling with high-tech telemetry features. An ultra-tough drivetrain harnesses the extreme power to make it easy to control and fun to drive.





Length:	27.32 inches (694mm)
Front Track:	13.57 inches (345mm)
Rear Track:	13.57 inches (345mm)
Ground Clearance:	2.27 inches (58mm)
Weight:	13.4lb (6.1kg)
Height:	10.29 inches (261mm)
Wheelbase:	16.53 inches (420mm)
Front Shock Length:	5.28 inches (134mm)
Front Threaded Shock Length:	5.28 inches (134mm)
Rear Shock Length:	6.3 inches (160mm)
Rear Threaded Shock Length:	5.55 inches (139mm)
Tires (pre-glued):	134mm x 57mm BFGoodrich® KR3 replicas
Wheels:	dual diameter 40mm x 56/81mm
Speed Control:	Velineon® VXL-6s
Motor (electric):	2200kV

Transmission:	Direct-drive with Torque-Biasing Center Drive
Overall Drive Ratio:	17.89:1
Front Differential Type:	Sealed, 4-gear
Rear Differential Type:	Locked spool
Center Differential Type:	Sealed, 4-gear (1M weight oil)
Chassis Structure / Material:	Inverted composite tub
Brake Type:	Electronic
Drive System:	Shaft driven 4WD
Steering:	Dual bellcranks with ball bearings
Radio System:	TQi™ 2-channel transmitter with 6533 TSM receiver
Servo:	2075X Metal Gear
Top Speed (stock gearing):	4s LiPo – 30+ mph, 6s LiPo – 50+ mph
Skill Level:	5
Battery Compartment:	181mm x 46mm x 56mm
